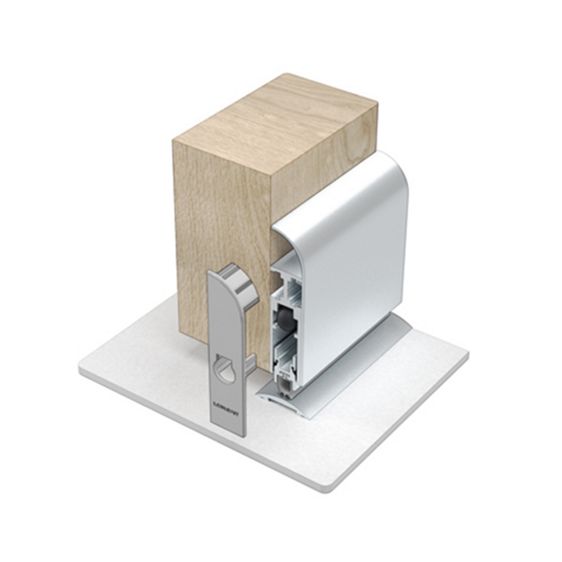

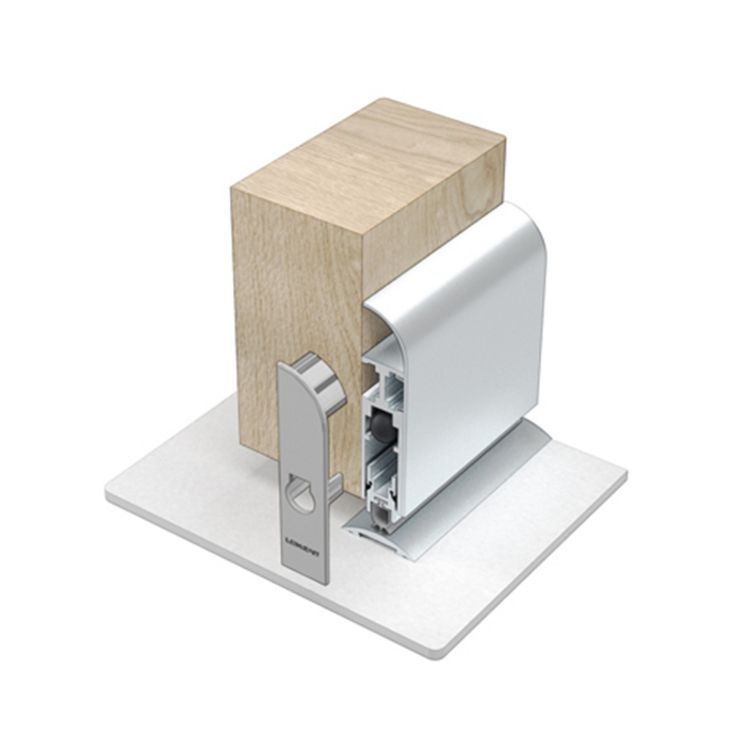

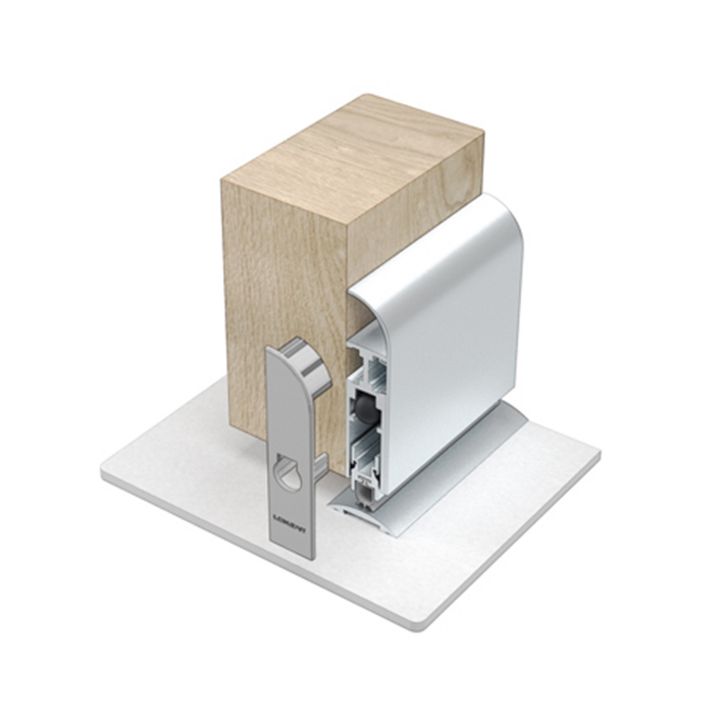

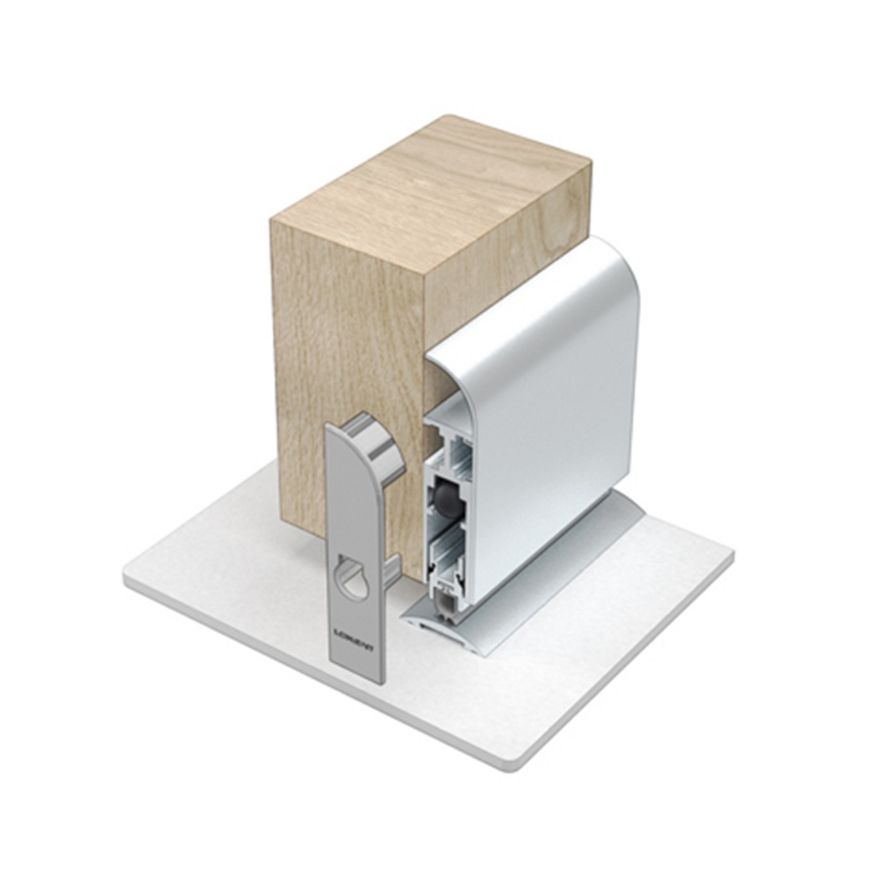

LAS8008 si Drop Seal
A slimline face-fixed automatic drop seal with a curved cover plate for enhanced aesthetics. It features a high efficiency mechanism, which lifts the seal clear of the floor as soon as the door is opened by a few millimetres; resulting in lower door operating forces. Self-levelling on uneven floors, seal height can be adjusted independently of fixing screws.
Key benefits
- Effective acoustic sealing solution that can easily be retrofitted to existing door assemblies.
- Durable flexible elastomeric fin elements are incorporated with the housing to provide acoustic and smoke properties.
- It requires no power connection.Curved cover conceals fixing points.
- Surface mounted application suitable for upgrading existing doors.
- Proven long term reliability.
Gap sizes
Accommodates & seals gaps up to 13mm.
Greater gaps can be sealed if product is used with a threshold plate, please speak to our technical team for more info.Fixing method
Surface mounted only. Fixing screws are supplied, holes to be drilled at time of fixing.Approvals
Fire: Tested in accordance with AS1530.4 on proprietary AS1905.1 fire door assemblies for up to 4 hour rating.Smoke: Tested in accordance with AS1530.7 with medium temperature smoke approvals for use on AS6905 compliant smoke door assemblies. Conforms with BCA Specification C3.4 smoke sealing requirements.
Sound: Acoustically tested in accordance with ISO10140-2 and AS/NZS717.1 with ratings up to 39Rw on appropriate rated assemblies.
Bushfire: Approved for use on proprietary fire door assemblies for Bushfire attack levels of Flame Zone (FZ) classification or less.
Durability: Long term mechanical test, completing 100,000 cycles without failure.
Standard lengths
435mm (may be cut back to 335mm)
535mm (may be cut back to 435mm)
635mm (may be cut back to 535mm)
735mm (may be cut back to 635mm)
820mm (may be cut back to 735mm)
920mm (may be cut back to 820mm)
1070mm (may be cut back to 920mm)
1220mm (may be cut back to 1070mm)Finishes
Silver anodised aluminium, grey silicone rubber gasket & grey end caps.
Special colours can be supplied using a powder coated finish for additional aesthetics (lead times apply).
