Damper installation system approved on Speedpanel wall system.

System No.	Building Element	Product	Max Size	FRL	System Detail	Approval Reference

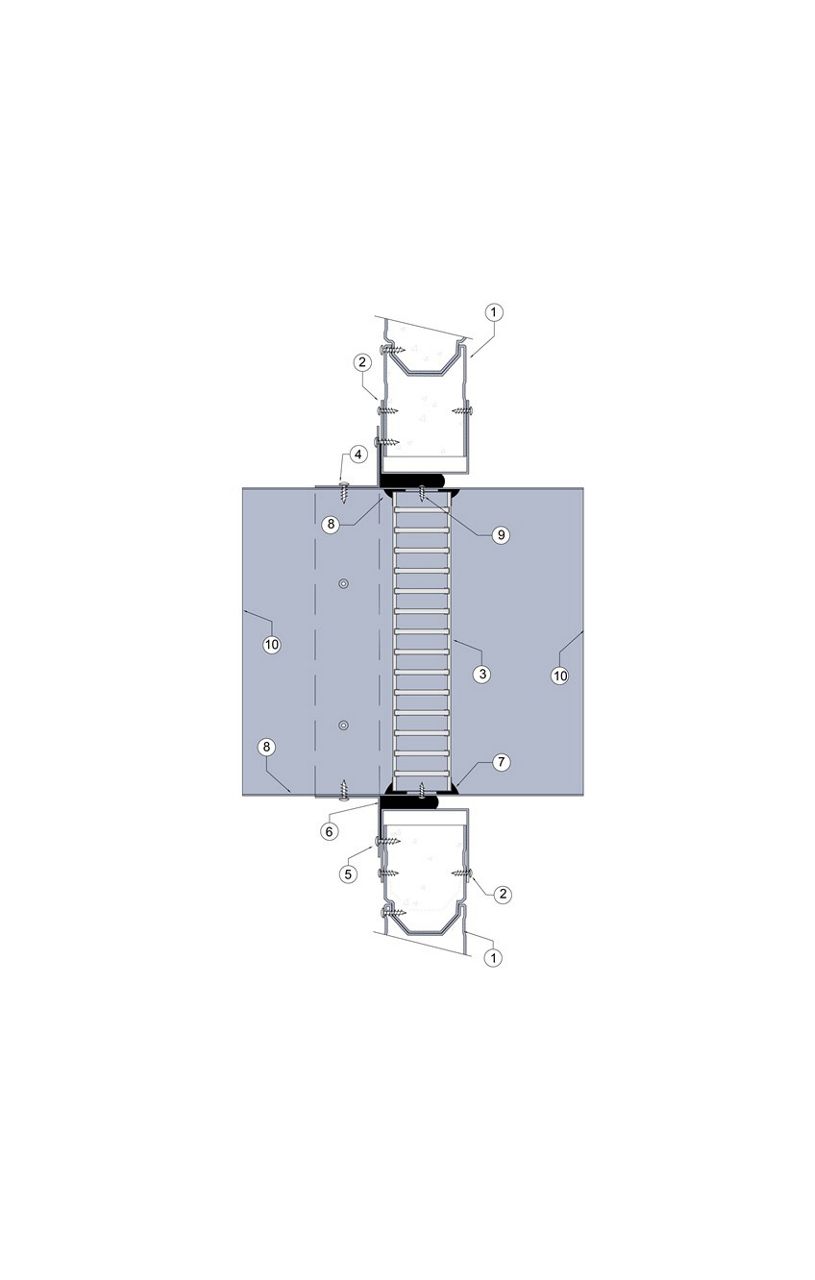

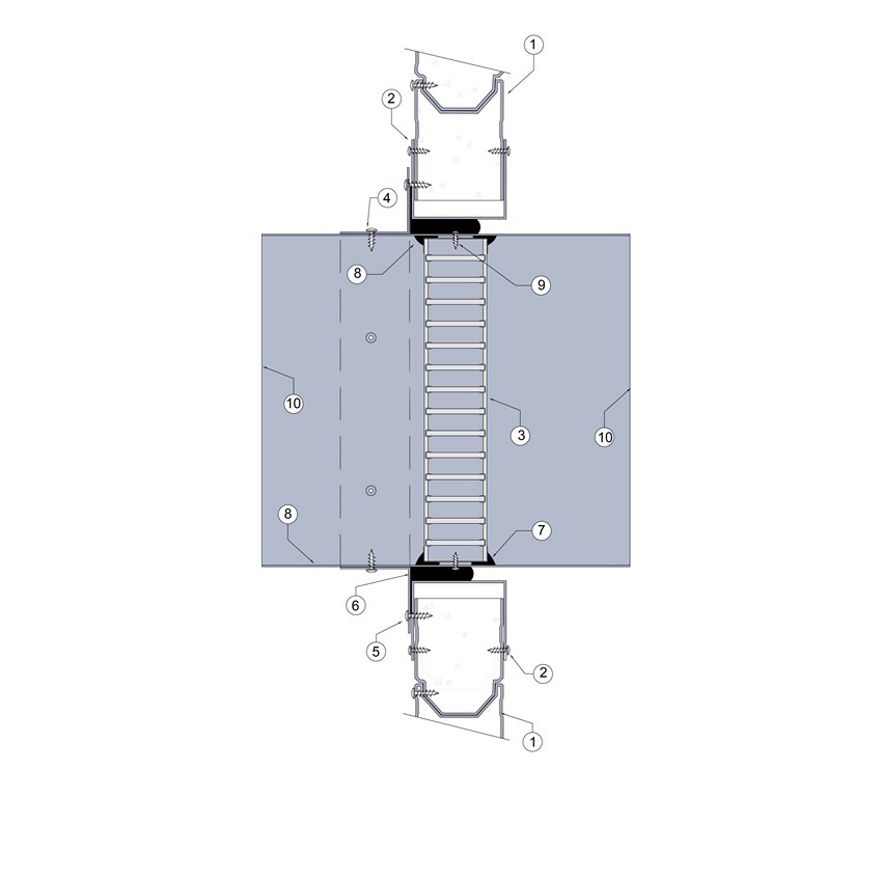

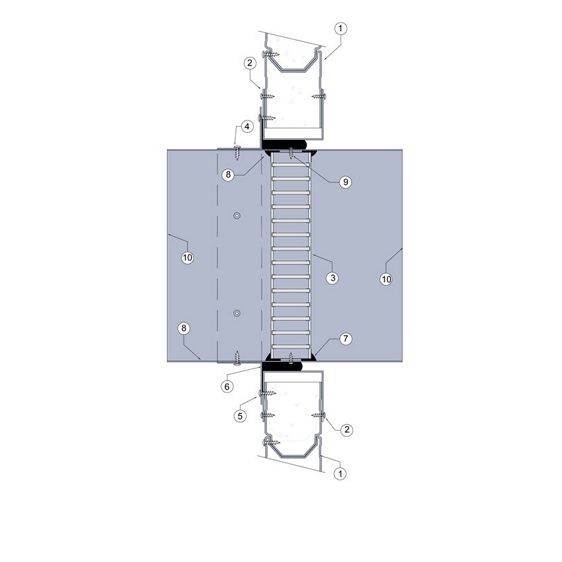

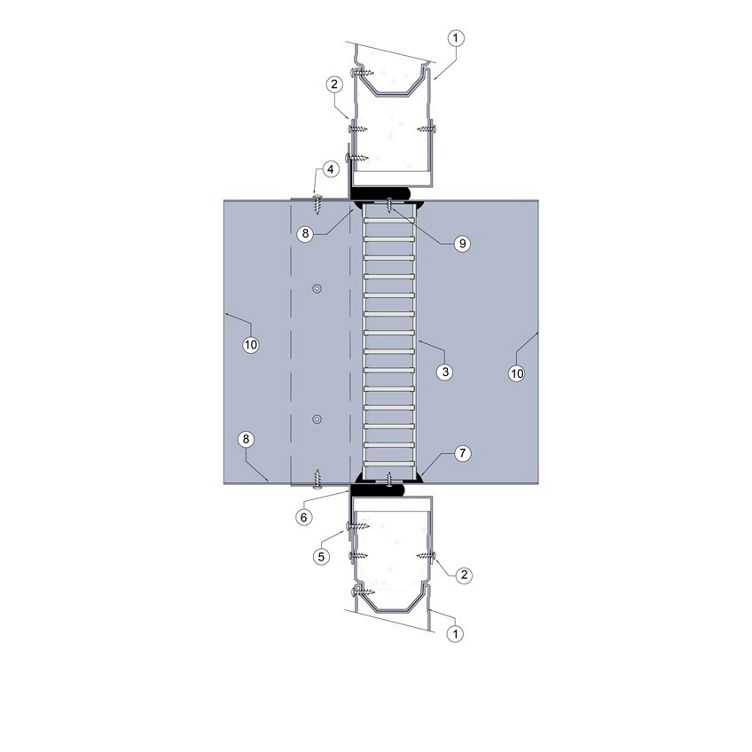

Speed panel^® 1	51mm, 64mm, 78mm Speedpanel^® wall	LVH44	1000mm x 1000mm	Up to -/120/-	General installation detail	EXOVA EWFA RIR 21622-31
Speed panel^® 2	51mm, 64mm, 78mm Speedpanel^® wall	LVH44	450mm x 450mm	Up to -/120/30	In duct angles both sides	EXOVA EWFA 33233400
Speed panel^® 3	51mm, 64mm, 78mm Speedpanel^® wall	LVH44	450mm x 450mm	Up to -/120/30	In duct angles both sides	EXOVA EWFA 33233400
Speed panel^® 4	51mm, 64mm, 78mm Speedpanel^® wall	LVH44C Circular	Up to 450mm diameter	Up to -/120/60	In duct angles both sides	EXOVA EWFA 33233400
Speed panel^® 5	51mm, 64mm, 78mm Speedpanel^® wall	LVH44	450mm x 450mm	Up to -/120/30	Mounted in wall with eggcrate cover grille	EXOVA EWFA 33233400

Standard Version: Speedpanels^® 1-5: AS1530.4 2014

Speedpanel - 1(PDF, 189 KB)
Speedpanel - 2(PDF, 188 KB)
Speedpanel - 3(PDF, 195 KB)
Speedpanel - 4(PDF, 372 KB)
