LSR8303
A cam activated automatic weather seal, with high efficiency spring mechanism that lifts the seal clear of the floor as soon as you open the door by a few millimetres. A clever clip system enables quick and easy installation.
Available Colours
Silver
White
Brown
Weather protection
Light protection
Cold protection
Draught protection
Insects + vermin
BAL<29
Approved for use on fire door assemblies for Bushfire attack levels of BAL<29
Key benefits
- Suitable for many door types.
- Ideal for security screens.
- Quick & easy installation - no need to cut or remove the door.
- Flexible and durable.
Performance
Protects against weather, cold, draught, light, sound, insects and vermin.Approvals
Bushfire: Approved for use on fire door assemblies for Bushfire attack levels of BAL<29.Location
- Opening side of the door.
- Closing side of the door.
- Overlay doors.
Gap sizes
3mm - 28mm.Length
925mm - can be cut back to 150mm.Seal material
Aluminium carrier with a flexible PVC blade.Fixing method
- LSR8303 is screw fixed onto the bottom of the door with hidden spring clips.
- Use the lever and stike plate for the opening side of a door.
- Use the lever and trianglualr stike for overlay doors.
- Use the circular stike for the closing side of the door.
Finishes

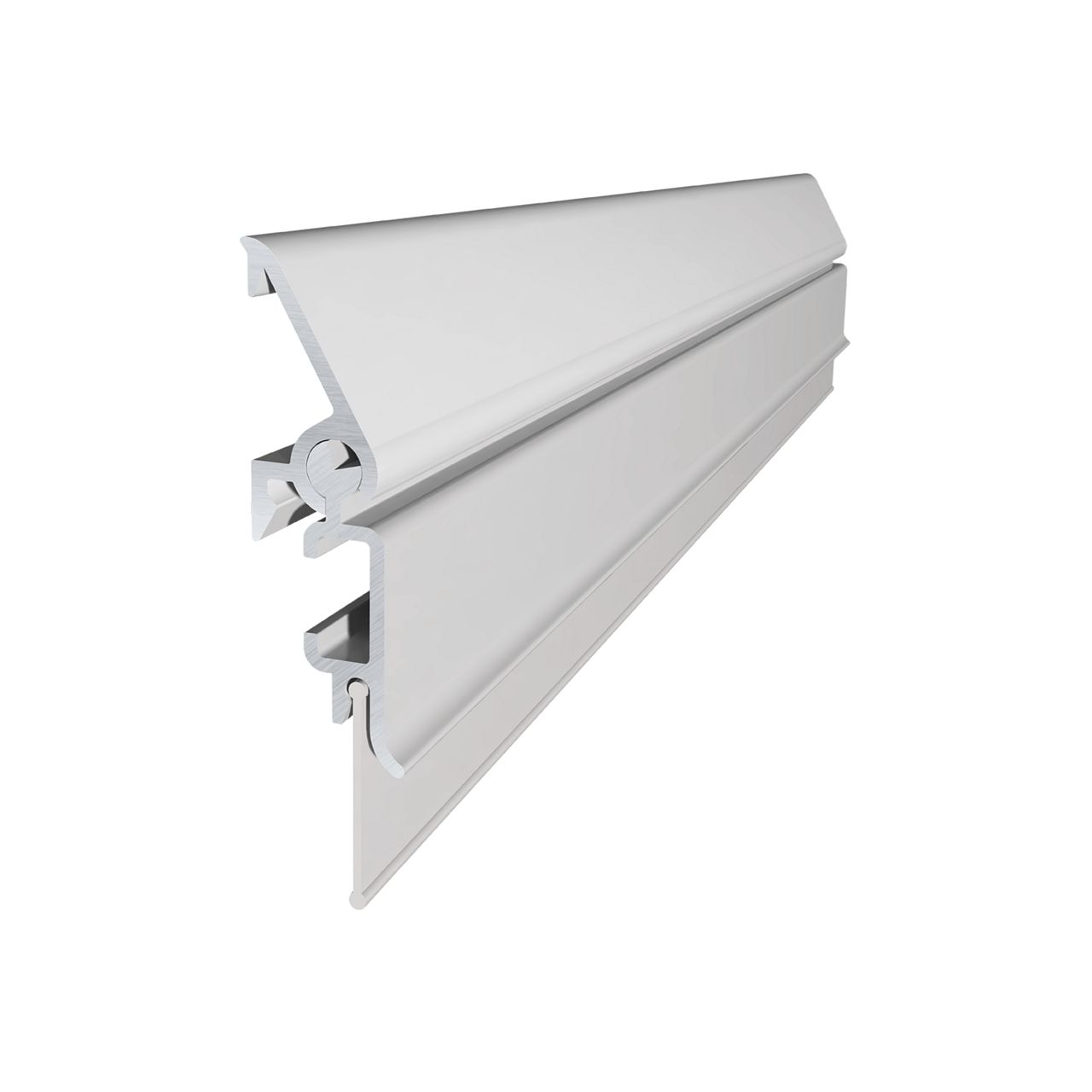

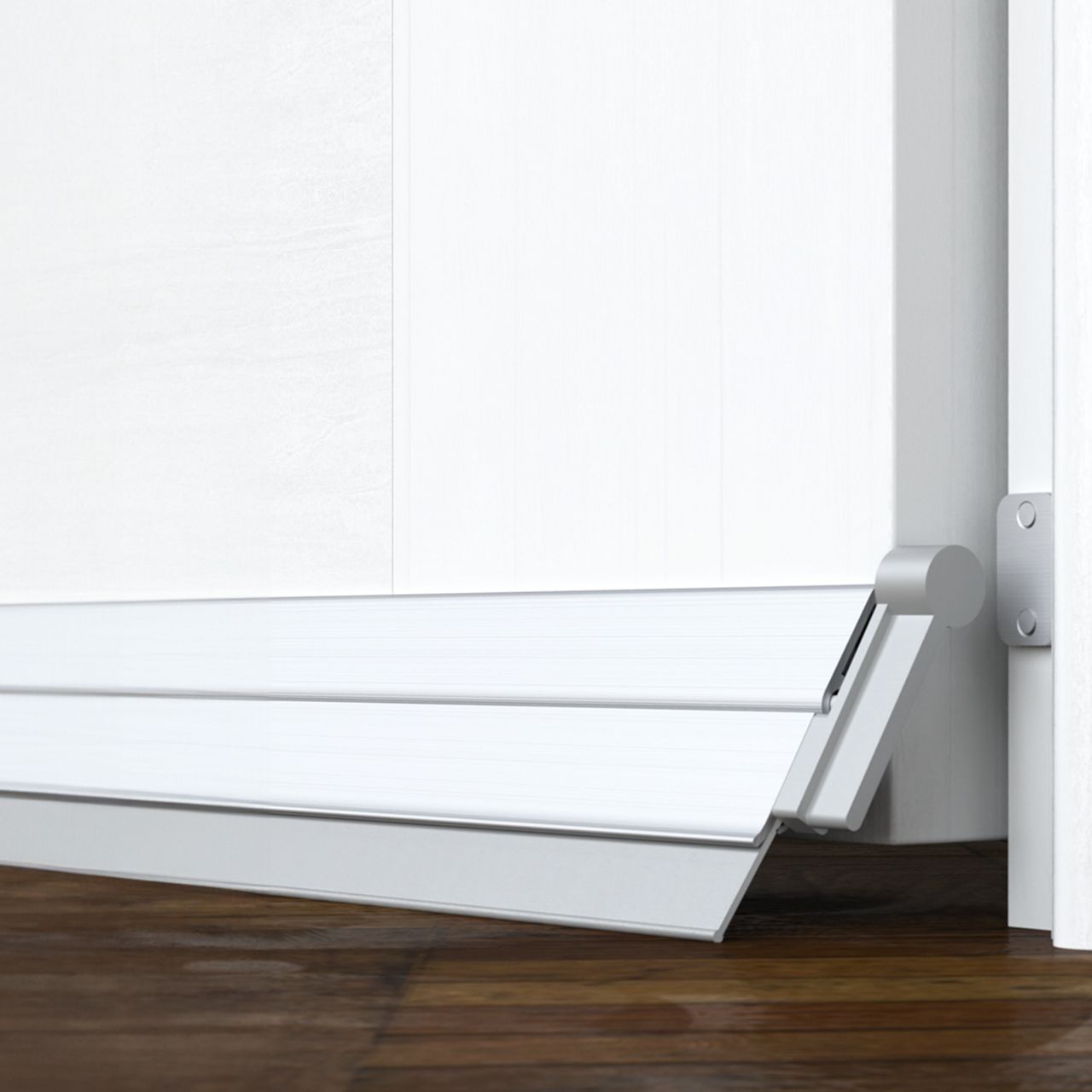

- Silver anodised aluminum with grey fixings.

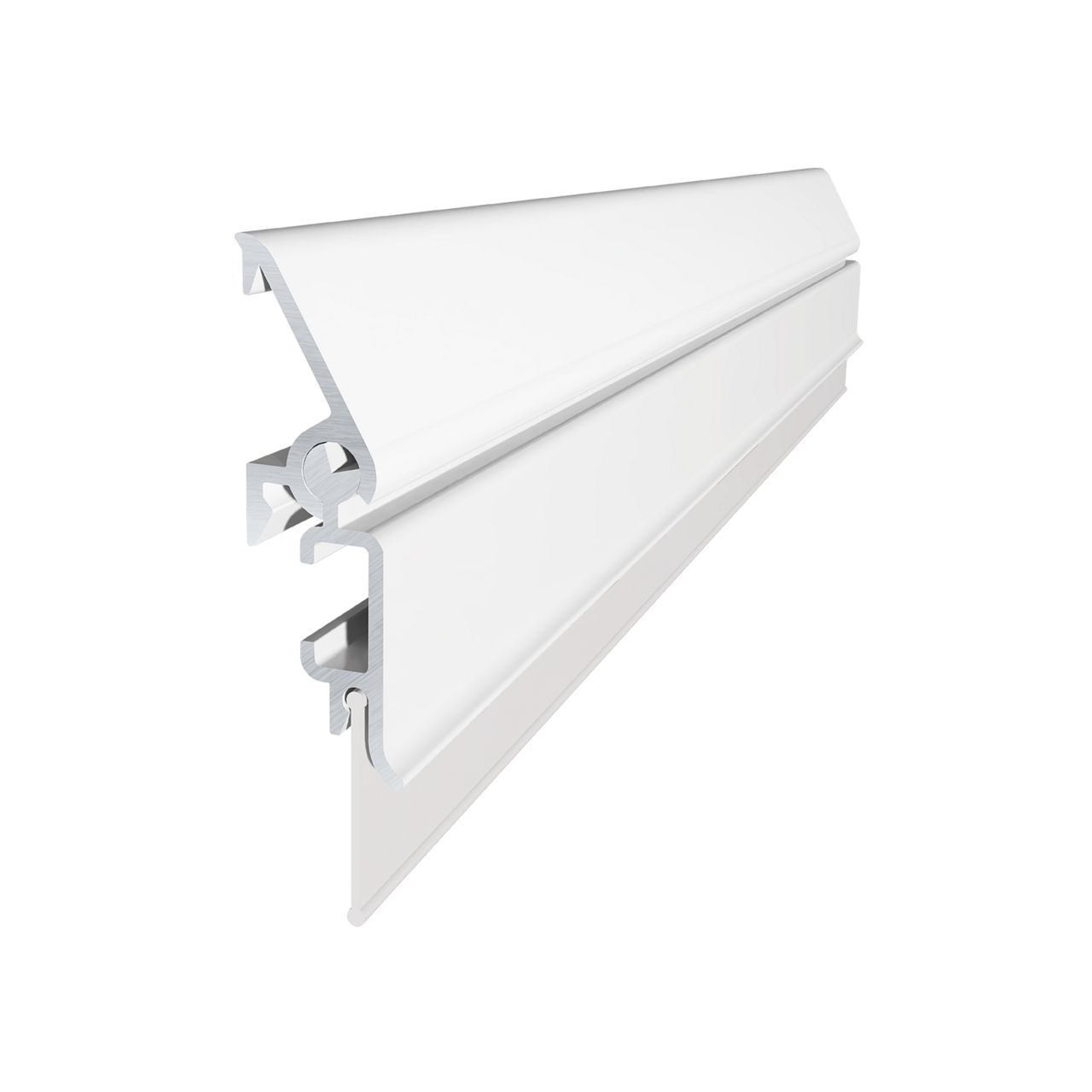

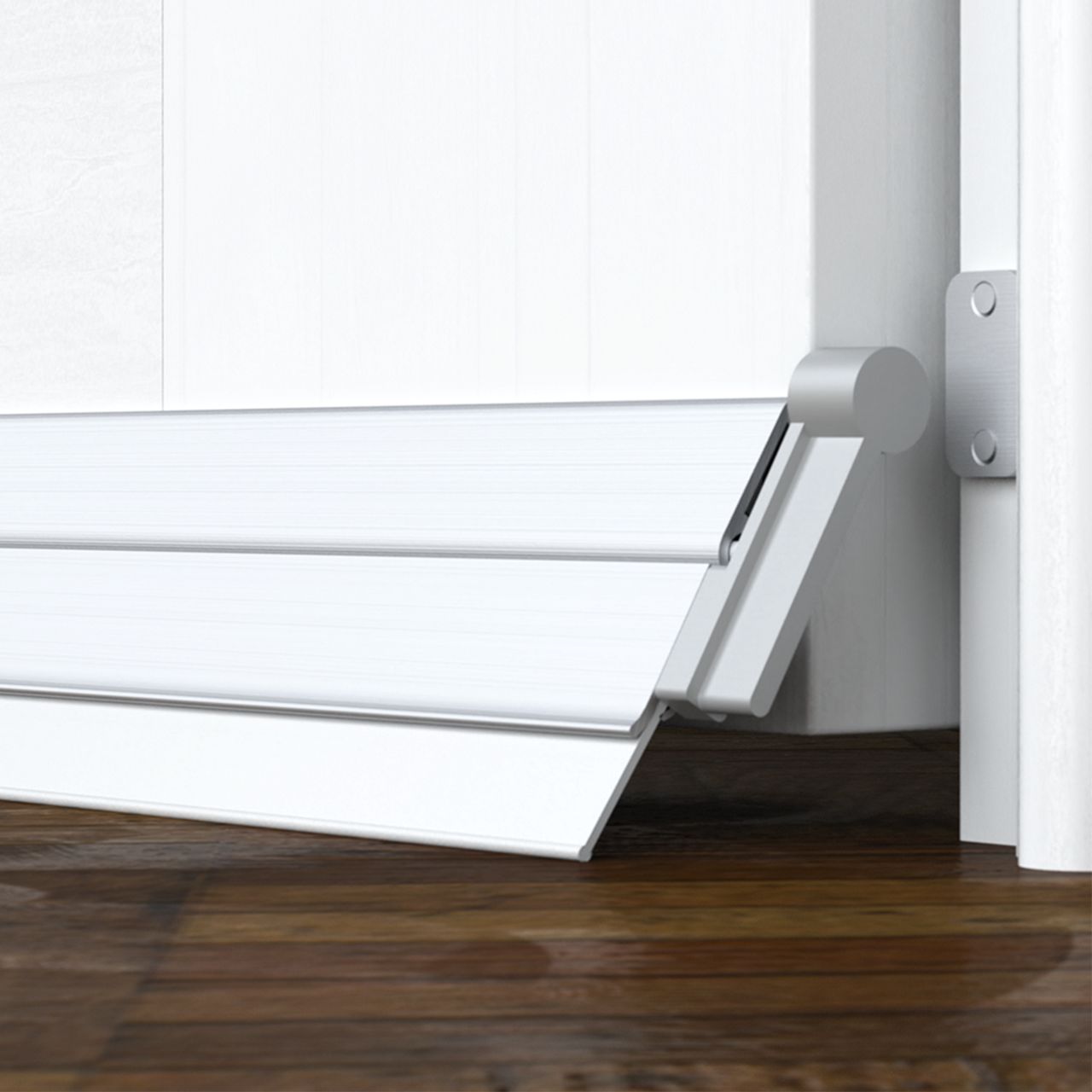

- White lacquered aluminium with grey fixings.

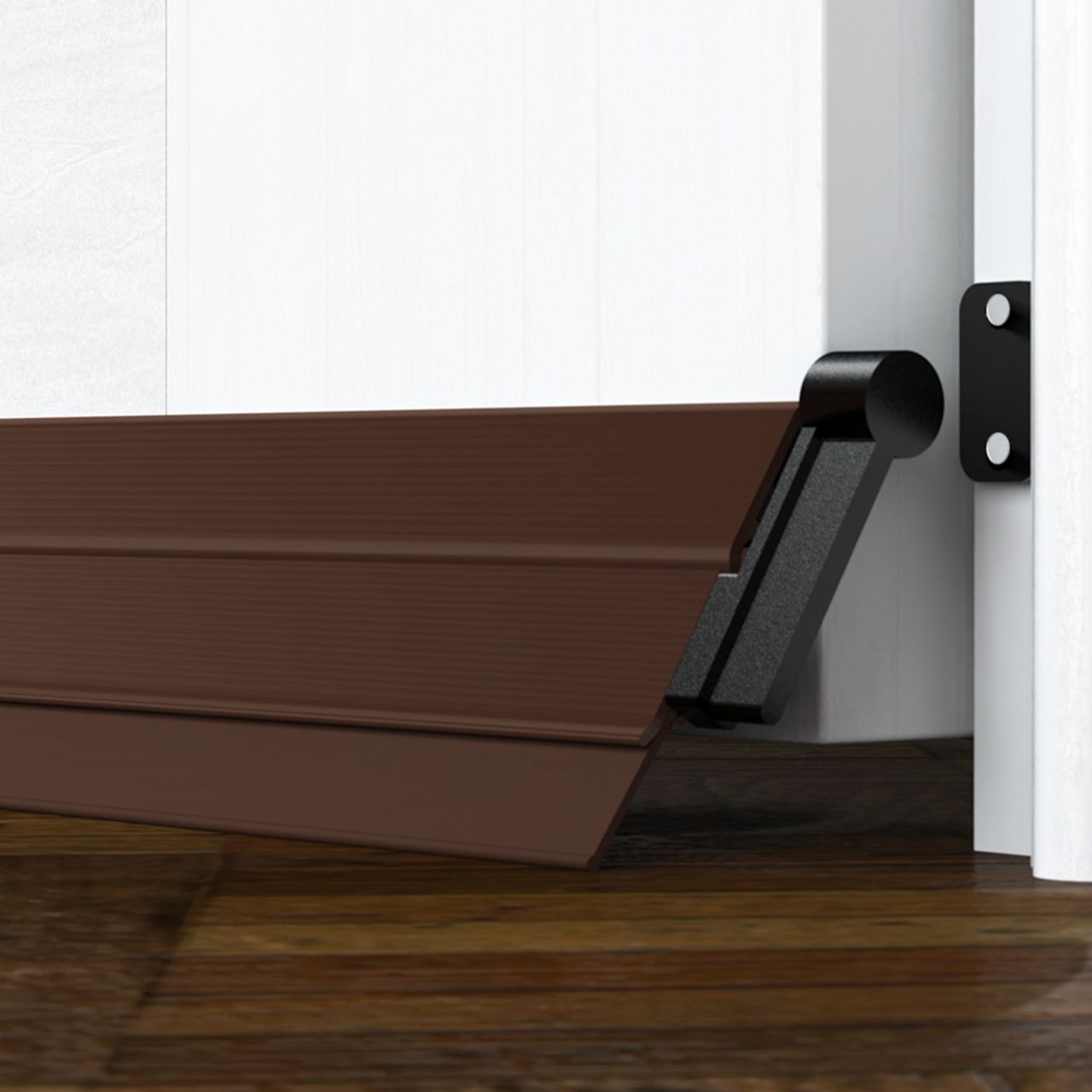

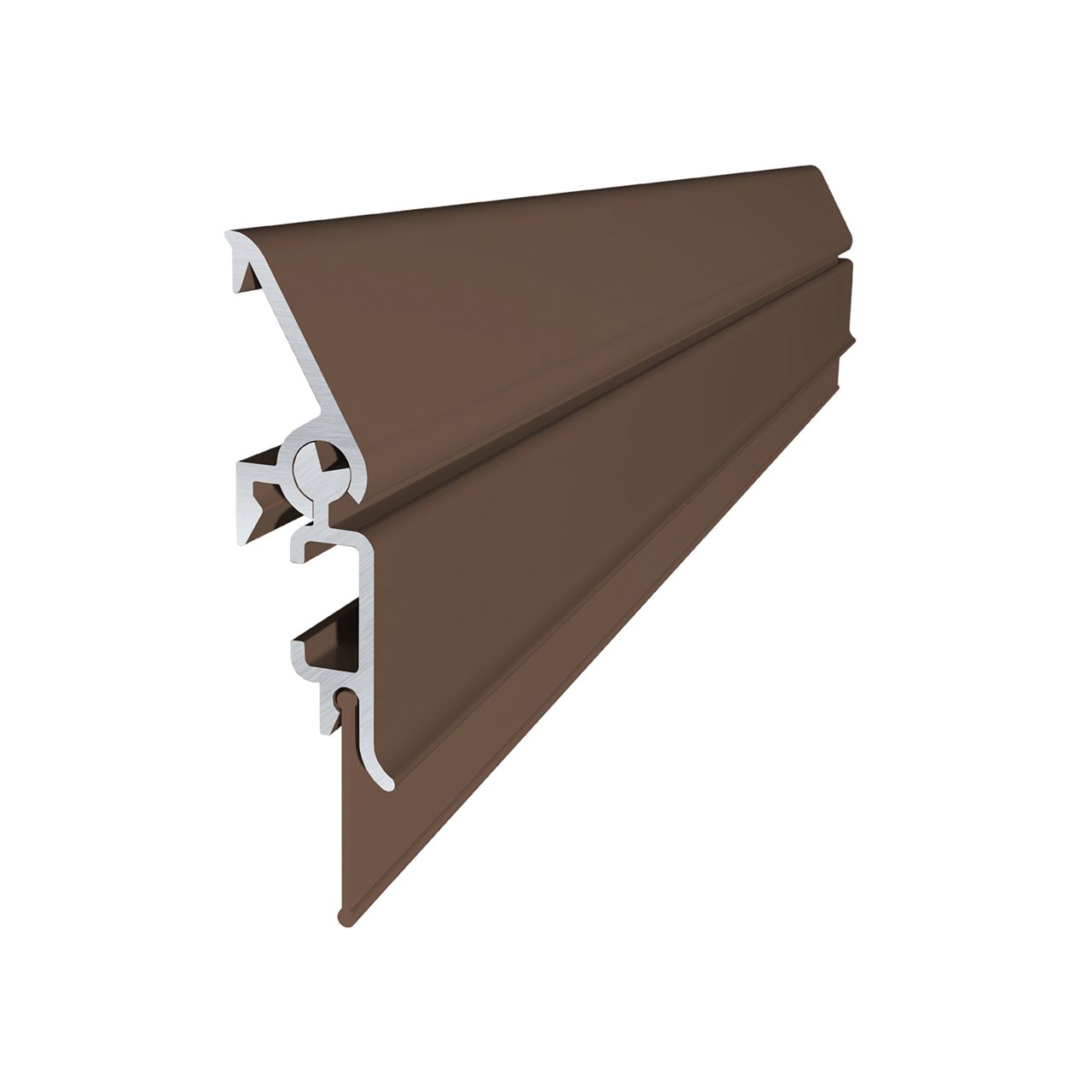

- Brown lacquered aluminium with black fixings.
Fixing Options
The Lorient range of automatic weather seals offer flexibilty when it comes to fitting. Each seal is supplied with a fixing kit suitable for three different door configurations.

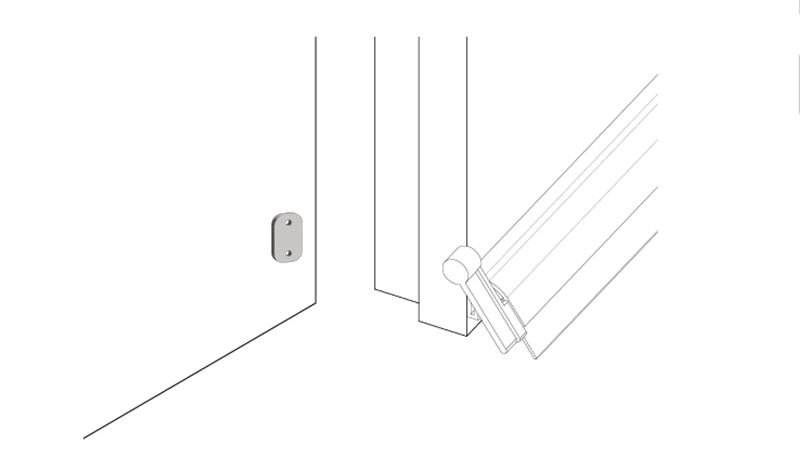

Opening side of the door
Opening side of the door
LEVER + RECTANGULAR STRIKE
- On the handle-side of the door, push lever into the seal with the cylindrical section at the top.
- Close door and mark where lever touches the frame and fit rectangular strike plate.
- Using a hammer, pin the square plastic strike to frame using the 2 pins provided.

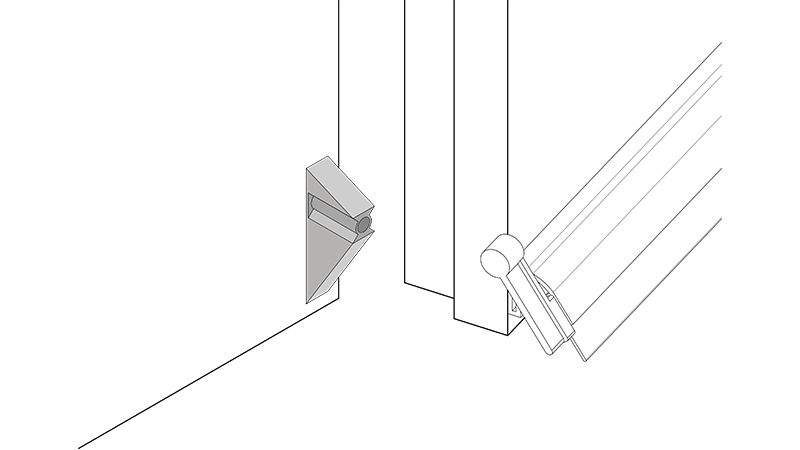

Overlay doors
Overlay doors
LEVER + TRIANGULAR STRIKE
- On the handle-side of the door, push lever into the seal with the cylindrical section at the top.
- Close door and mark where lever touches the frame.
- Screw triangular strike to frame using screw provided.

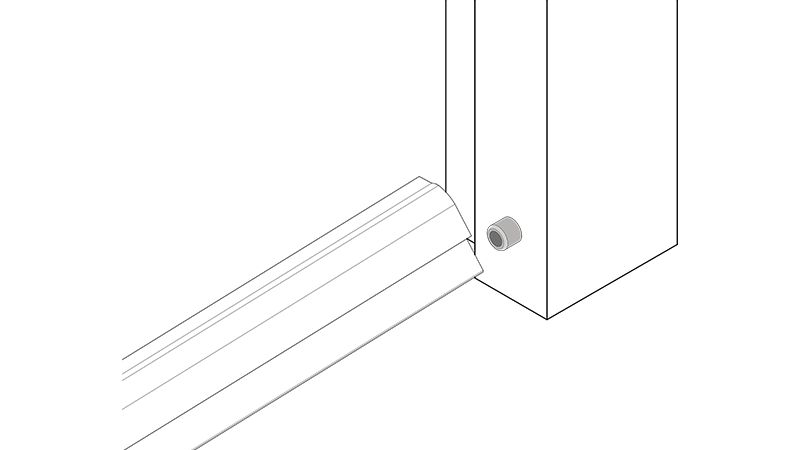

Closing side of the door
Closing side of the door
CIRCULAR STRIKE
- With the door in the closed position, slide the cylinder against the seal at the hinge-side stop until the seal is making contact with floor. Screw cylinder into position.
