AAS7501 AURA Perimeter Seal
Designed with a seamless curve for enhanced aesthetics, with proven performance for acoustic containment when installed around the head and jambs of doors.

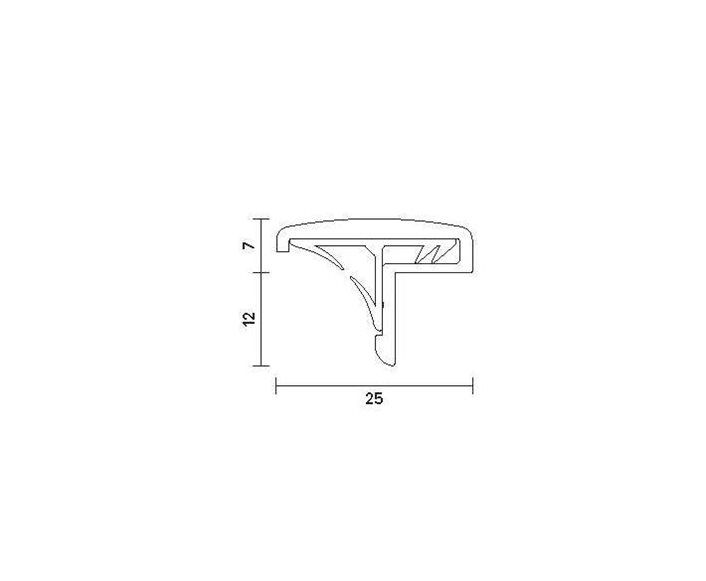

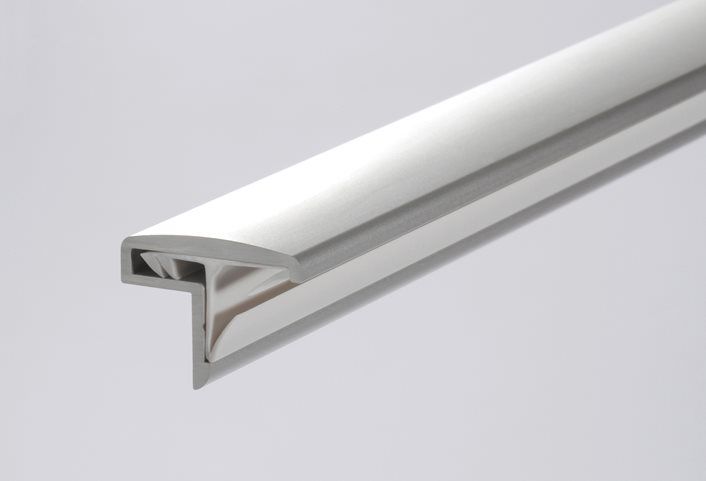

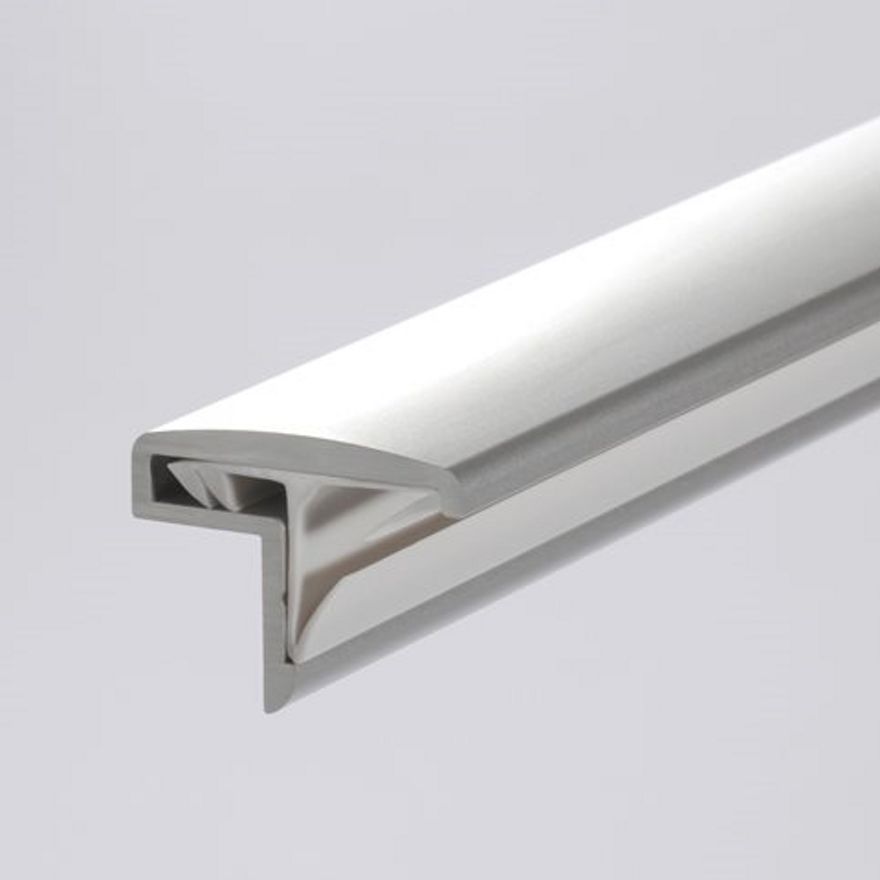

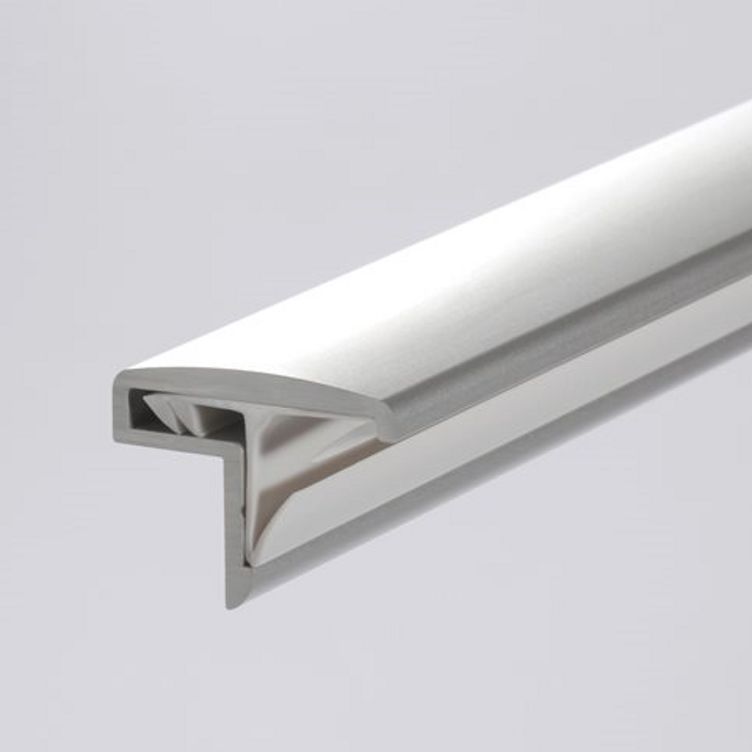

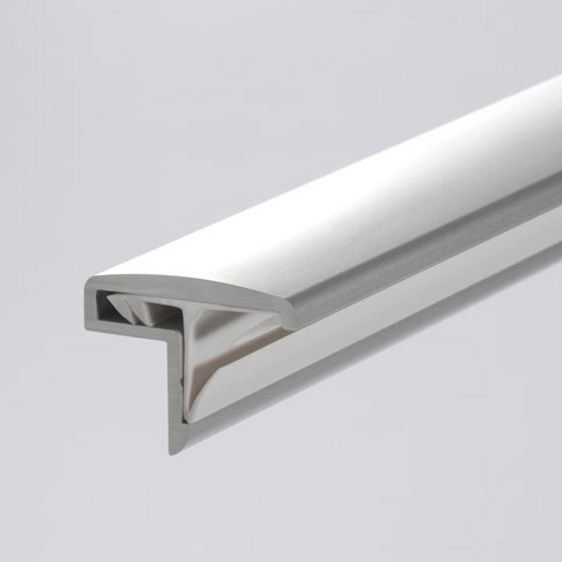

AAS7506 AURA Meeting Stile Astragal
A stylish, yet robust seal designed for use on plain or rebated meeting stiles. With proven acoustic performance it is also suitable for smoke, light, and draught containment. The leg can be cut out to make way for locks and latches.

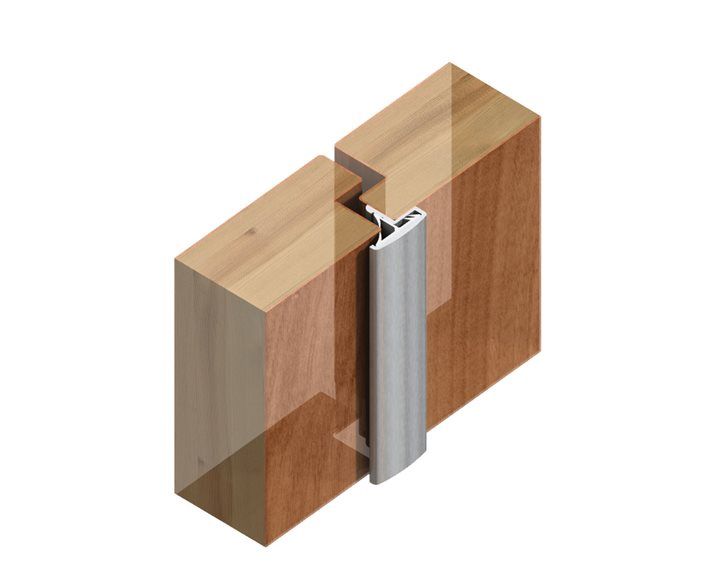

Location
Meeting stiles of single action double leaf doors - where only one door leaf is in use.Standard Lengths
2.25m, 2.75m and 3.0m.Finishes
Silver anodised aluminium with grey gasket.
Other colours available.Fixing
Fixing holes pre-drilled and countersunk. Screw pack provided Using self-adhesive tape to
position aluminium carrier while fixing, push-fit Batwing® seal into place.Note: A door selector should be considered unless one leaf is intended to be fixed.
Performance
Acoustic: ISO 10140-2 & AS/NZS ISO717.1
Weighted Sound Reduction Index: 39 dB (AAS7506 & AAS8501 on a standard architectural door)
Smoke Leakage: BCA Specification C3.4 smoke sealing requirements
Durability: 1,000,000 cycles on full-size door assemblies
Similar products
AAS7503 AURA Perimeter Seal
A stylish perimeter seal with square cover plate ideal for butt-jointing or mitring. Proven performance for acoustic and smoke containment.
