LAS7004 si Perimeter Seal | Lorient

Designed for use around the perimeter and meeting stiles of single or double swing doors.

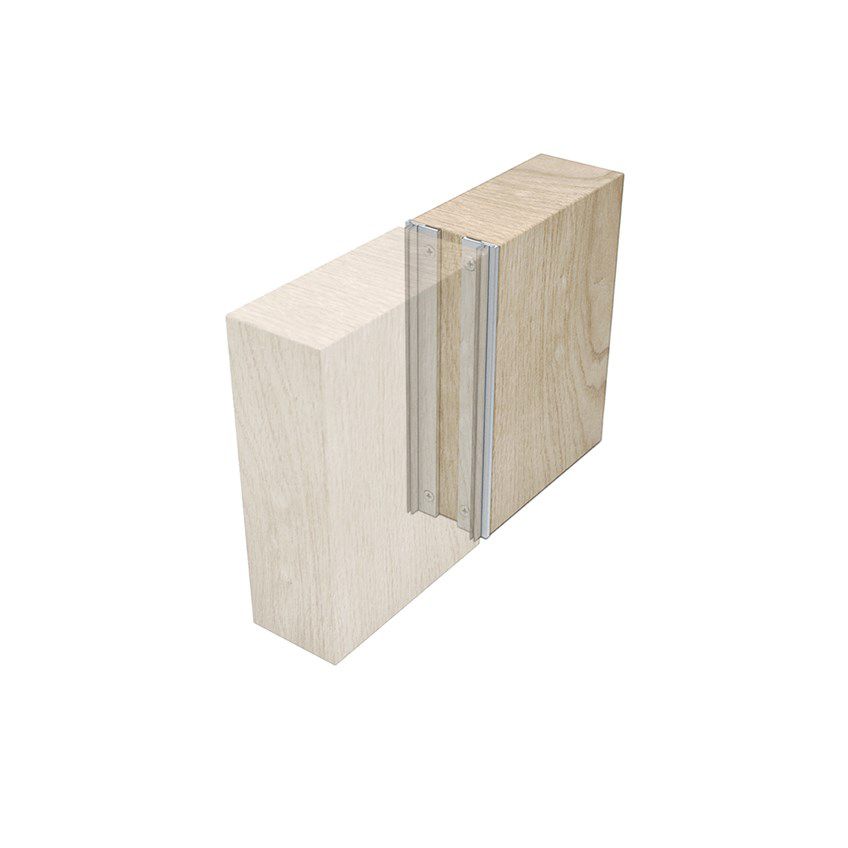

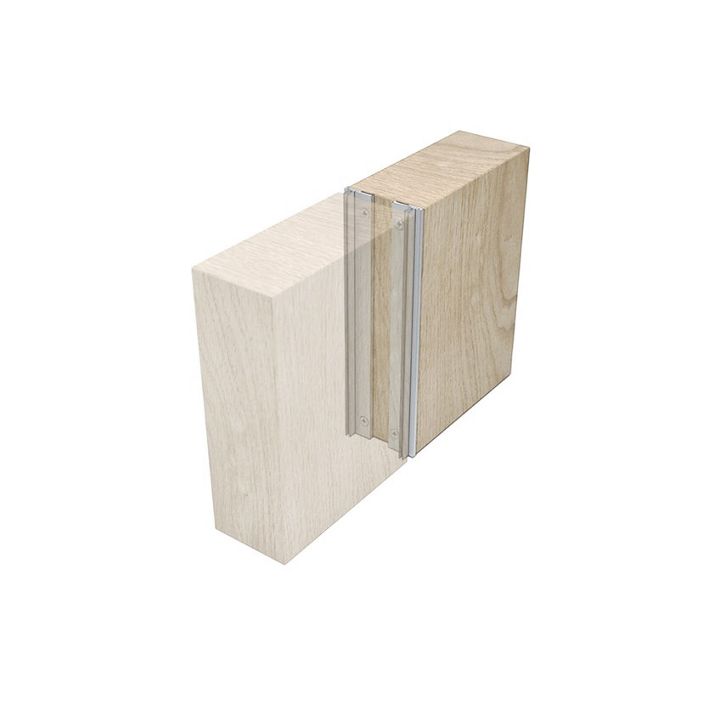

LAS7004 si Perimeter Seal

Key benefits
Effective sealing solution for smoke, sound, light or weather.
Acoustic data available in accordance with ISO10140.2. Durable silicone rubber finned gasket.
Suitable to meet DTS smoke door specification C3.4.
The leg of this seal can be cut out to accommodate lock hardware.
May be surface mounted or semi mortised.
Tested for reliability, the seal completed 1,000,000 cycles without failure.
Standard lengths
1m and 2.1m. Other lengths to special order.
Location
Meeting stiles of single and double swing doors. Sliding doors.
Fixing method
Fixing screws are supplied. Fixing holes are pre-drilled and countersunk.
Finishes
Silver anodised aluminium with grey twin seal insert.
Approvals
Sound: Acoustically tested in accordance with ISO10140-2 and AS/NZS717.1 with ratings up to 32Rw on appropriate rated assemblies.
General
LAS7004 si datasheet(PDF, 223 KB)
LAS7004 si fitting instruction(PDF, 558 KB)
Lorient Architectural, Acoustic, Smoke and Fire Containment Systems brochure(PDF, 6 MB)
CAD
LAS7004(DXF, 2 MB)
