LAS7001 si Perimeter Seal

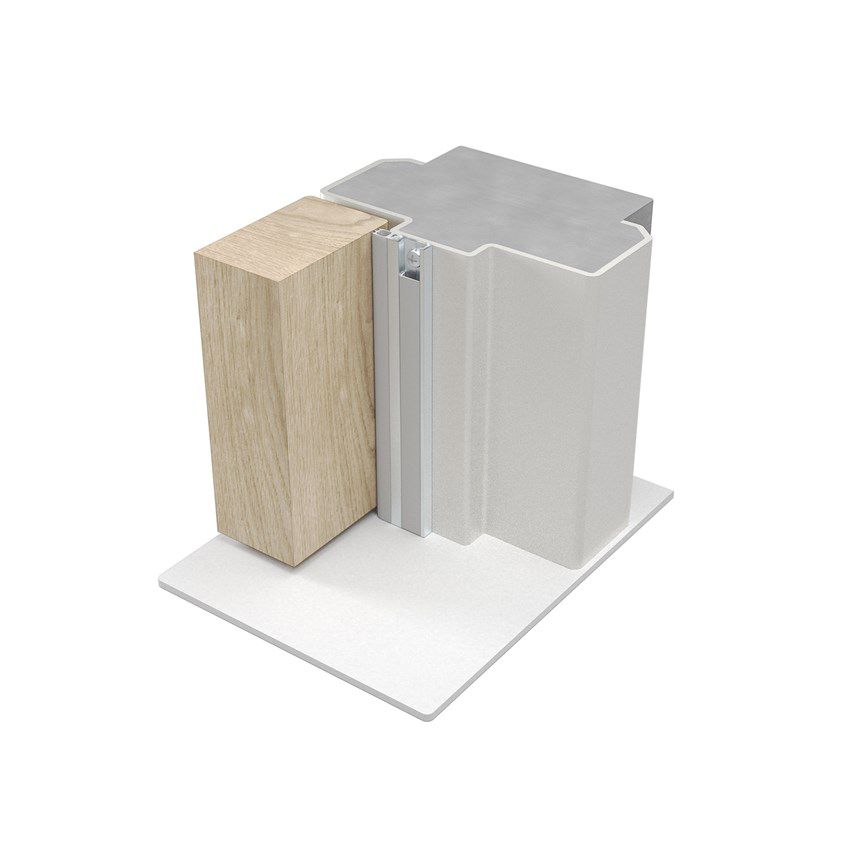

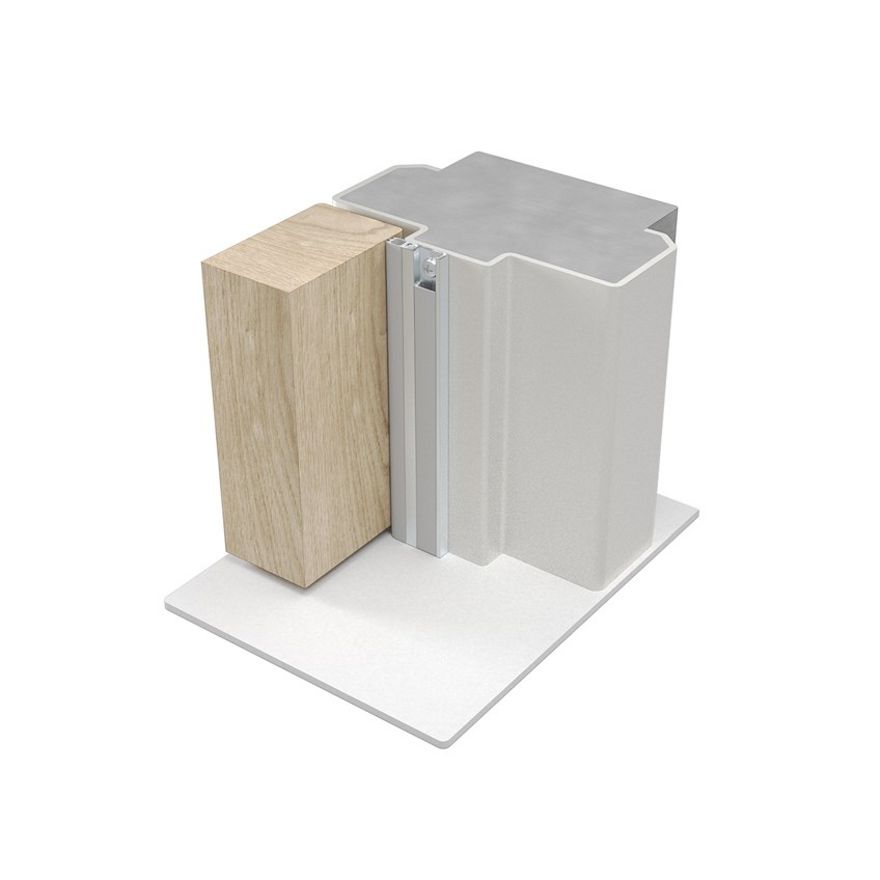

A slim-line, stop mounted compression seal incorporating an anodised aluminium carrier fitted with a fire rated silicone rubber gasket and non-shrink, clickfit cover strip. The seal is fitted to the head and jambs of the door frame to create an effective seal between the frame and the door face.

Available Finishes

  • Silver

  • Black

  • Key benefits

    • A slim-line and unobtrusive acoustic seal that can easily be retrofitted to existing door assemblies.
    • Fitted with high performance fire rated silicone rubber gasket.
    • Supplied with slotted fixing holes for accurate positioning and easy adjustment.
    • Non-shrink, click fit cover strip conceals the fixing points.

    Standard lengths

    • 1m, 2.1m and 2.75m.
    • Single doorset pack (SDP): (1 x 1m , 2 x 2.1m)
    • Long single doorset pack (LSDP): (1 x 1m, 2 x 2.75m)
    • Double doorset pack (DDP): (3 x 2.1m)
    • Long double doorset pack (LDDP): (1 x 2.1m, 2 x 2.75m).

    Gap sizes
    Accommodates and seals gaps from 0mm to 8mm.

    Fixing method
    Screw fixed to the door frame with supplied screw pack.

    Finishes

    • Silver anodised aluminium with grey silicone rubber gasket and click-fit cover strip.
    • Black anodised aluminium with black silicone rubber gasket and click-fit cover strip.

    Approvals

    • Fire: Tested in accordance with AS1530.4 on proprietary AS1905.1 fire door assemblies for up to 4 hour rating.
    • Sound: Acoustically tested in accordance with ISO10140-2 and AS/NZS717.1 with ratings up to 39Rw on appropriate rated assemblies.
    • Durability: Long term mechanical test, completing 1,000,000 cycles without failure.
  • General
    LAS7001 si datasheet(PDF, 327 KB)
    LAS7001 si perimeter seal fitting instruction(PDF, 494 KB)
    Lorient Architectural, Acoustic, Smoke and Fire Containment Systems brochure(PDF, 6 MB)
    CAD
    LAS7001(DXF, 2 MB)
